Zen DIY Freestanding Pergola Kit with 4 Shade Canopies – Up to 24' x 24' – 4x4 or 6x6 Brackets

Create a personalized outdoor retreat with the Zen DIY Freestanding Pergola Kit with Shade Canopies. Designed for building a nine-post, freestanding pergola with four shaded sections, this customizable kit accommodates structures up to 24' x 24'. Whether you're creating a shaded backyard lounge, an outdoor dining area, or a gathering space for family and friends, the four-canopy design gives you flexibility to plan a pergola around your available space.

The kit combines precision-fabricated steel brackets with four shade canopies made from fade-resistant, 180 GSM high-density polyethylene (HDPE) knitted fabric. Each canopy blocks up to 95% of harmful UV rays while allowing some rainwater to pass through the material rather than collect on top. Multiple canopy sizes are available, and you can choose between 4x4 and 6x6 pergola bracket configurations to suit your project.

Designed for DIY construction, the kit includes the structural connection brackets, post bases, canopy mounting hardware, and stainless steel wood screws needed for the supplied components. Pre-drilled bracket holes simplify wood connections, while the canopies feature adjustable attachment straps for maintaining tension. Lumber and foundation anchoring hardware are purchased separately, allowing you to select the wood and appropriate anchors for your installation.

Key Features

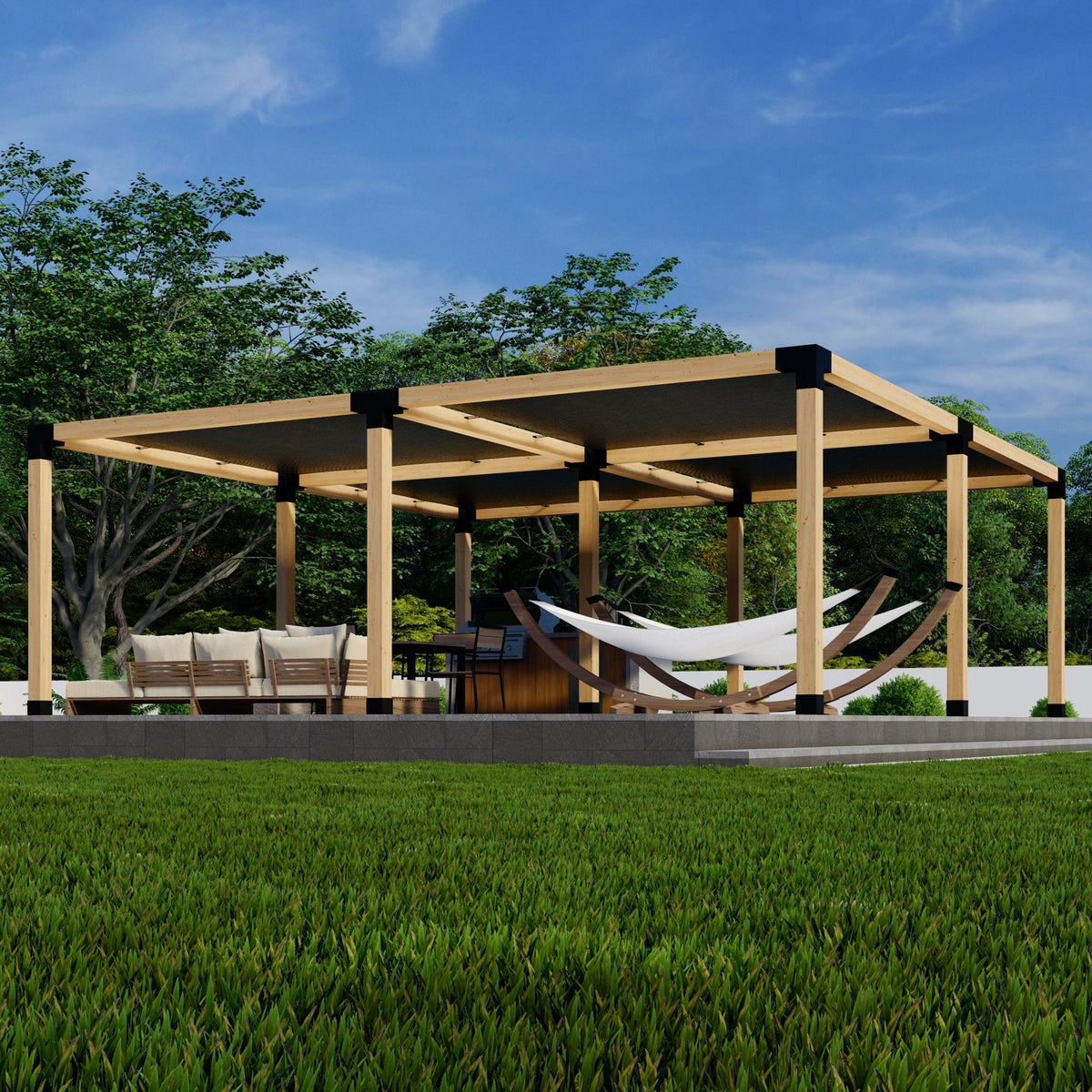

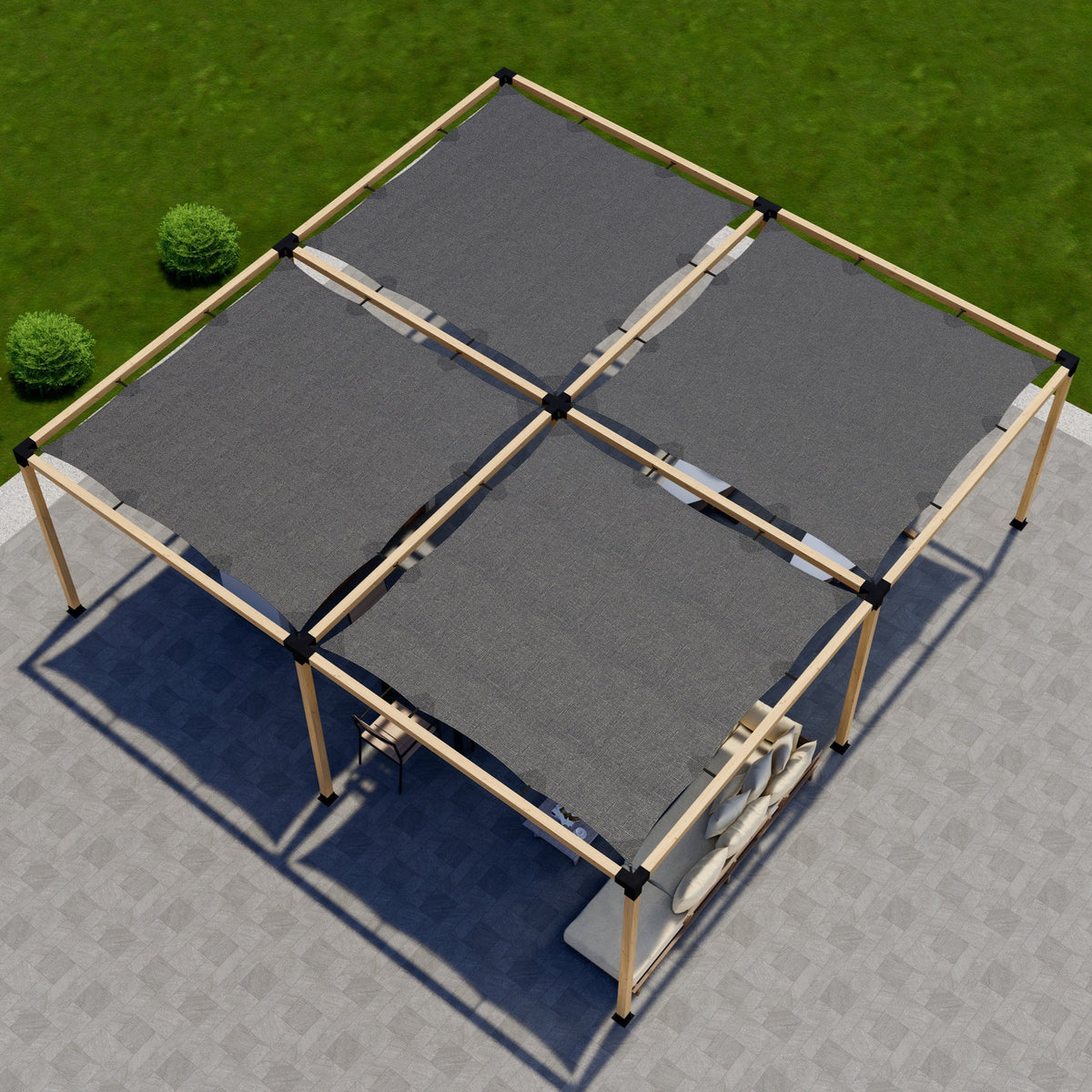

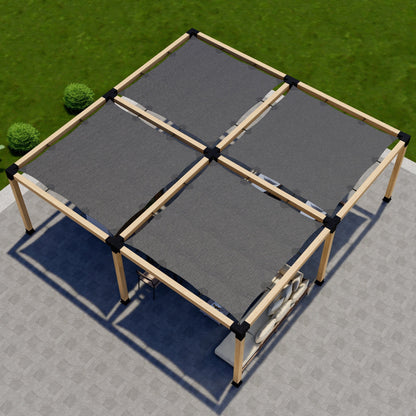

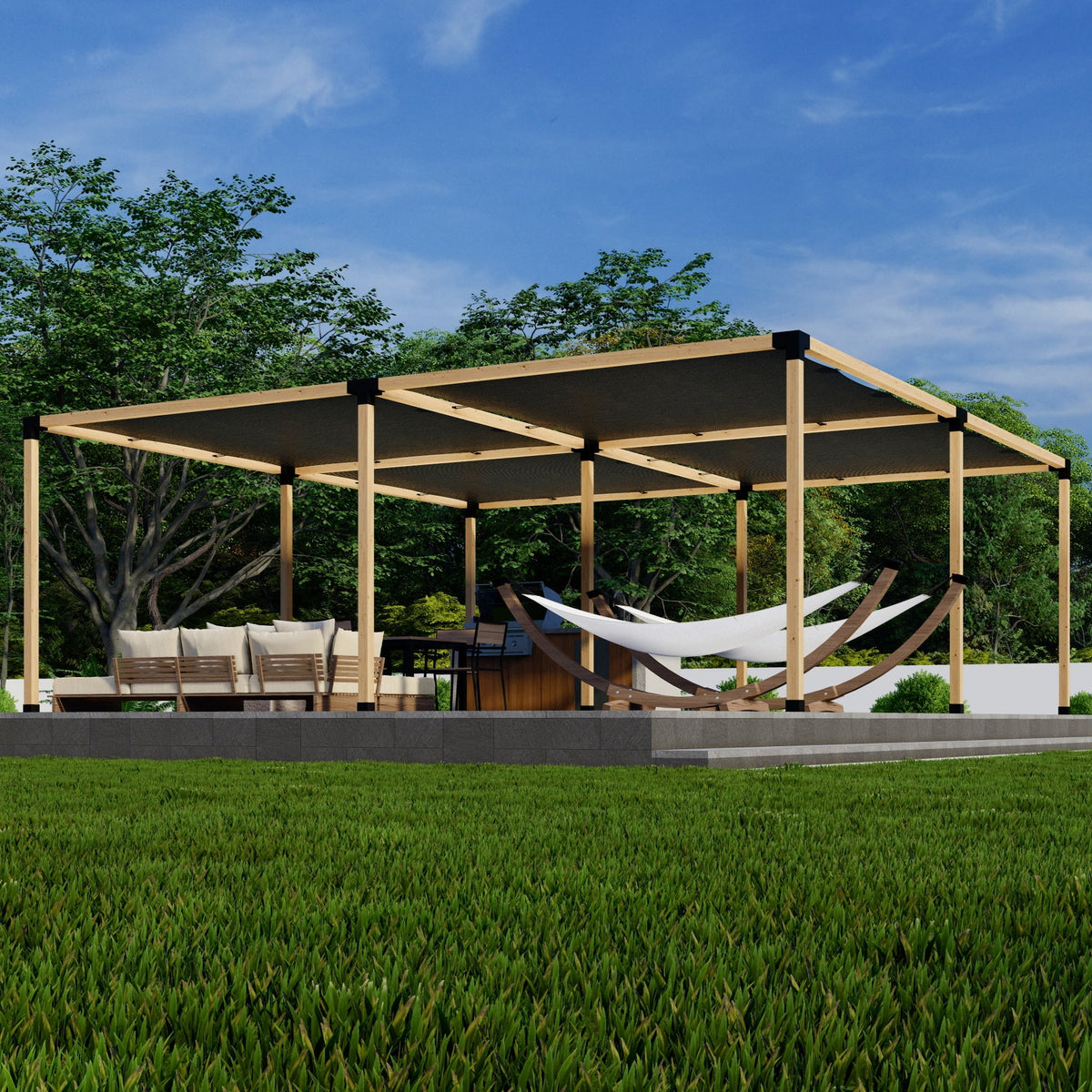

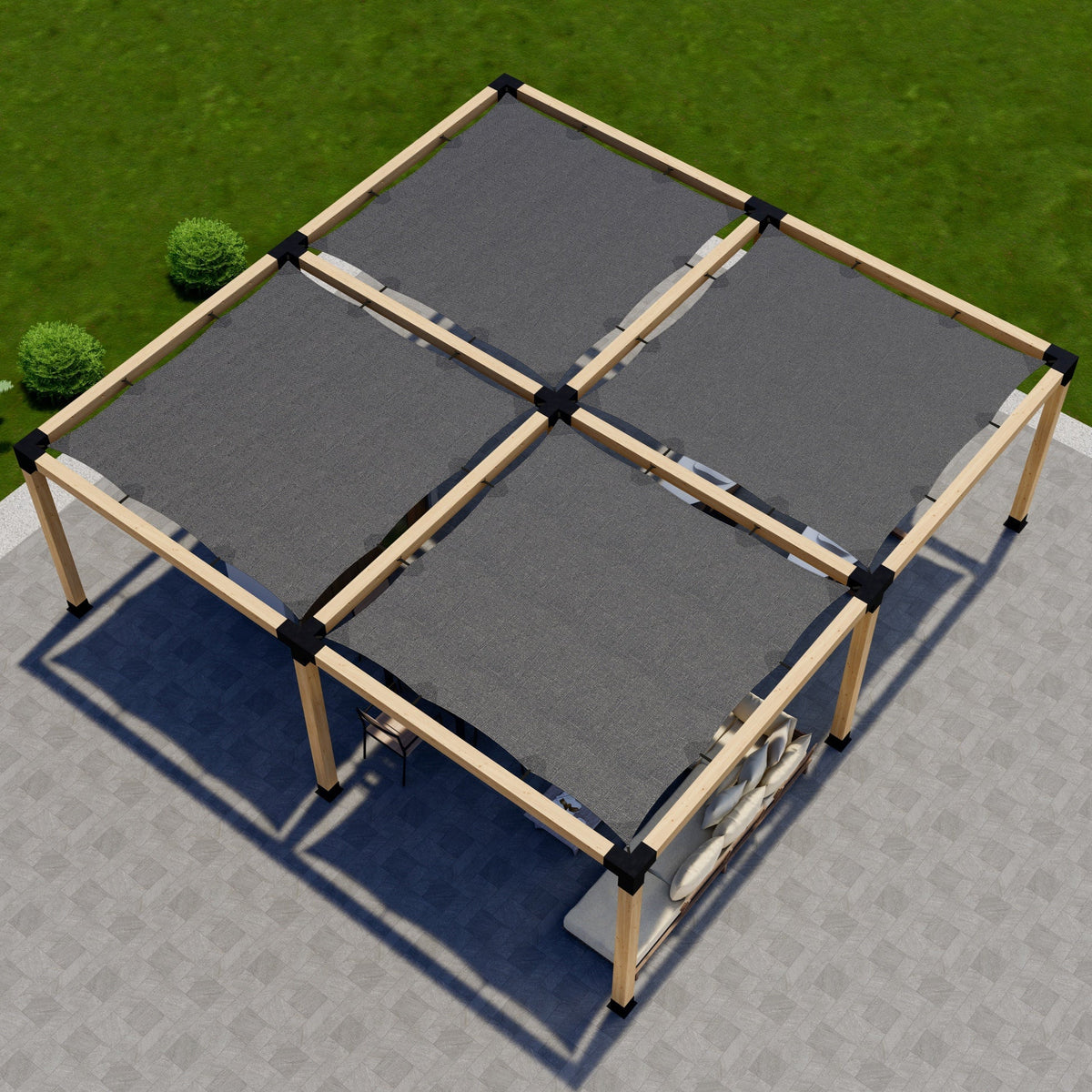

Customizable Freestanding Design: Build a freestanding pergola with nine posts and four canopy-covered sections, accommodating an overall structure up to 24' x 24'.

Choice of Bracket Sizes: Available with 4x4 or 6x6 post brackets to accommodate your selected lumber configuration.

Four Shade Canopies: Includes four HDPE fabric canopies that provide adjustable coverage options through a selection of available sizes.

UV-Blocking Fabric: The canopy material is specified to block up to 95% of harmful ultraviolet rays.

Fade-Resistant Material: Constructed from 180 GSM knitted high-density polyethylene fabric designed to resist fading.

Semi-Permeable Canopy Design: The knitted fabric allows rainwater to pass through, helping reduce water accumulation on the canopy surface.

Steel Pergola Brackets: Features laser-cut and laser-welded steel brackets with a protective weather coating.

Bracket Material Thickness: Uses 12-gauge steel for 6x6 brackets and 14-gauge steel for other bracket sizes.

Pre-Drilled Bracket Holes: Brackets include pre-drilled openings for securing wood and compatible accessories.

Canopy Tension Straps: Each canopy features four straps per side to help maintain tension and reduce sagging.

Included Stainless Steel Screws: Comes with #12 stainless steel wood screws for connecting the supplied brackets to lumber.

Canopy Mounting Hardware: Includes mounting brackets and screws for attaching canopy straps to pergola corner brackets and roof beams.

Product Specifications

Product Name: Zen DIY Freestanding Pergola Kit with Shade Canopies

Pergola Type: Freestanding

Structural Layout: Nine posts with four canopy sections

Maximum Pergola Size: 24' x 24'

Bracket Options: 4x4 or 6x6

Bracket Material: Steel

6x6 Bracket Thickness: 12-gauge steel

Other Bracket Thickness: 14-gauge steel

Bracket Fabrication: Laser-cut and laser-welded

Bracket Finish: Weather-resistant protective coating

Bracket Hole Configuration: Pre-drilled

Canopy Quantity: Four

Canopy Material: High-density polyethylene (HDPE) knitted fabric

Canopy Fabric Weight: 180 GSM

UV Blocking: Up to 95%

Canopy Construction: Fade-resistant and semi-permeable

Canopy Attachment: Four straps per side

Wood Screws: Stainless steel #12

Assembly: DIY construction required

Pergola and Canopy Size Options

Maximum Overall Pergola Size: 24' x 24'. The kit supports smaller configurations within this maximum size.

Bracket Size Selection: Choose either 4x4 or 6x6 brackets.

8' x 8' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size to accommodate mounting hardware and straps.

8' x 10' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size.

8' x 12' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size.

10' x 10' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size.

10' x 12' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size.

12' x 12' Canopy: Actual fabric dimensions are approximately 4 inches shorter than the nominal size.

Canopy Sizing Note: All six canopy sizes are nominal measurements. Actual canopies measure approximately 4 inches shorter than their listed dimensions to provide room for mounts and straps.

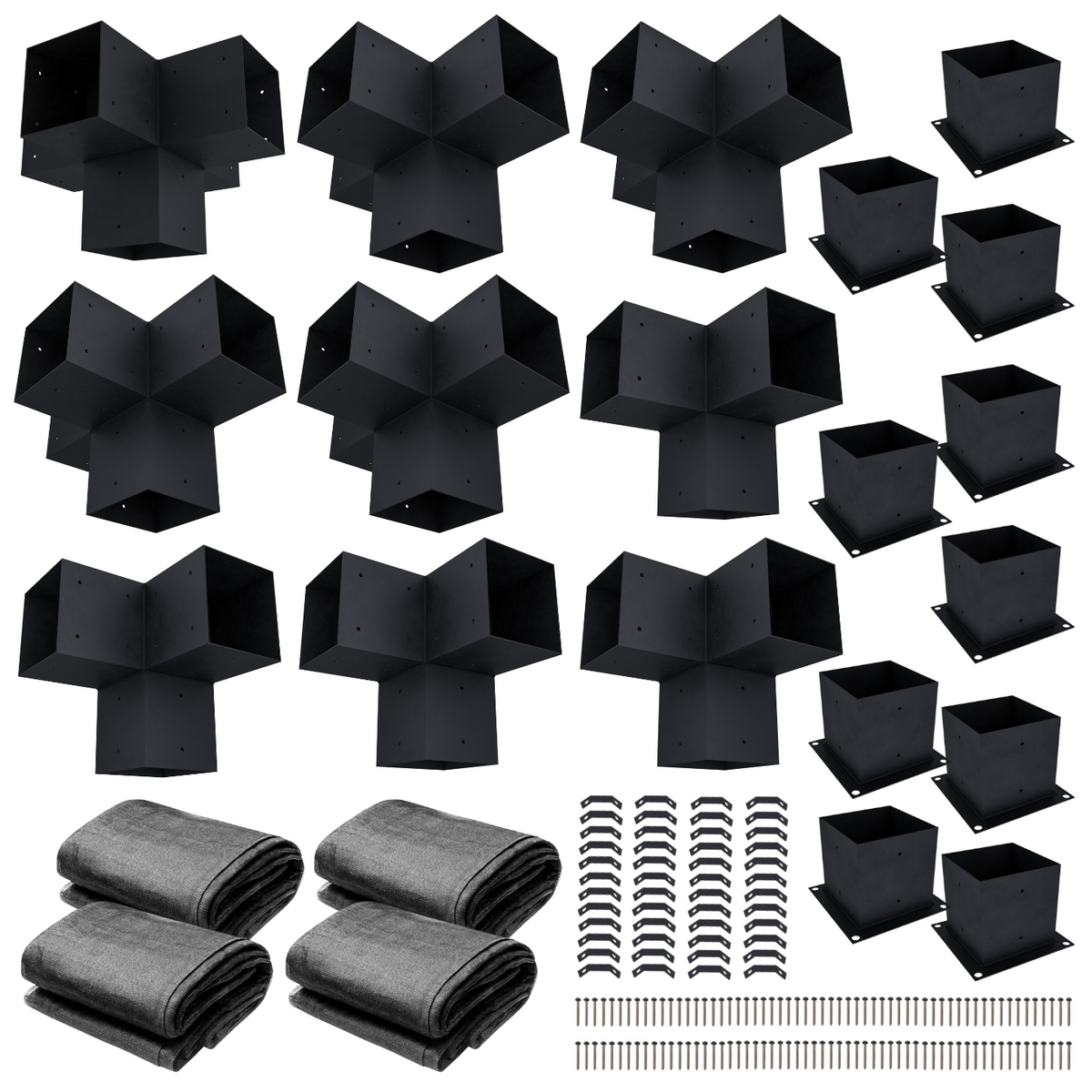

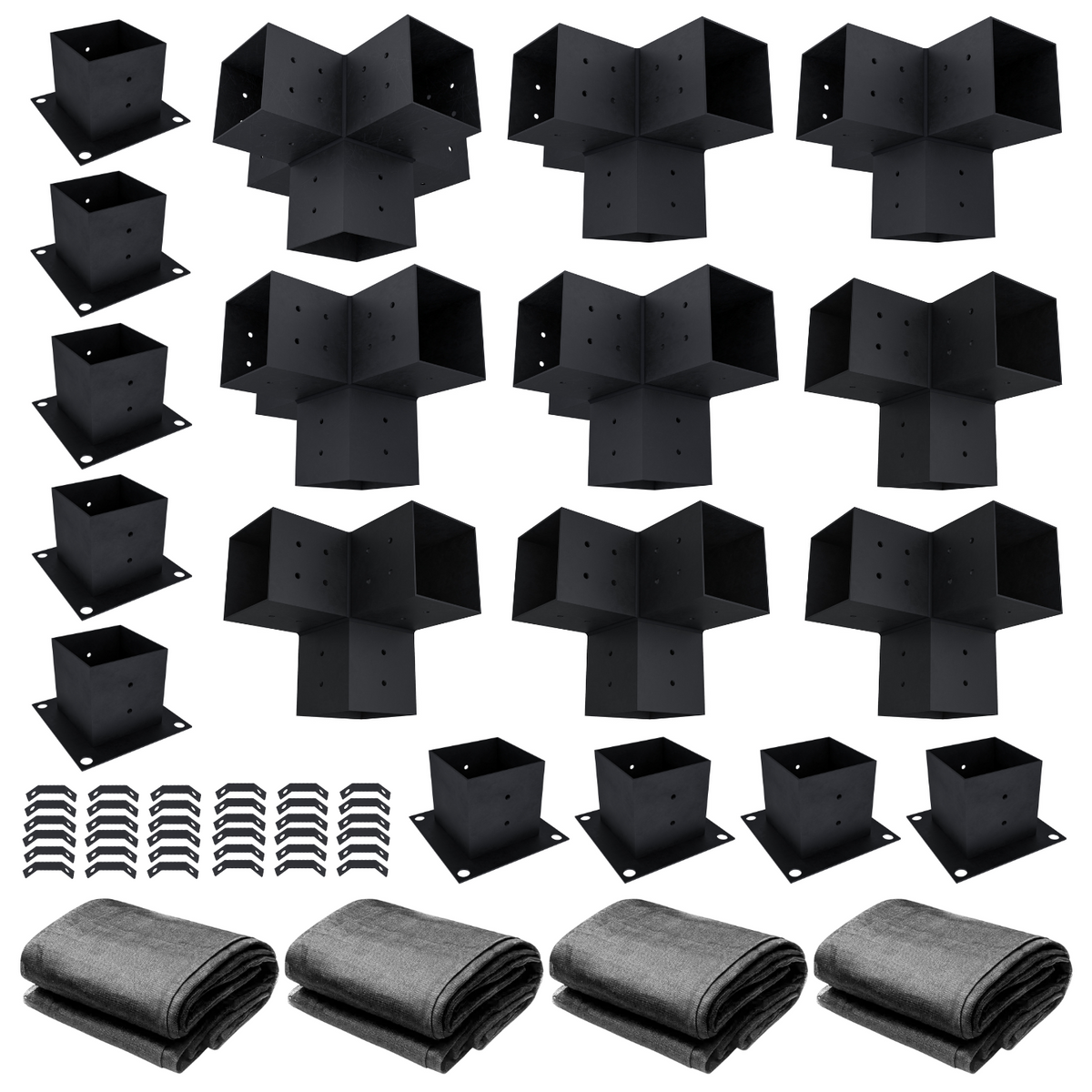

What's Included

Post Base Brackets: Nine brackets for connecting the pergola posts to the foundation anchoring system.

Corner 3-Arm Brackets: Four structural connection brackets.

Middle 4-Arm Brackets: Four structural connection brackets.

Central 5-Arm Bracket: One central structural connection bracket.

Shade Canopies: Four HDPE knitted fabric shade canopies.

Canopy Mounting Brackets: Hardware for attaching the canopies to the pergola structure.

Canopy Mounting Screws: Screws for securing canopy straps and mounting brackets.

Stainless Steel Wood Screws: #12 stainless steel screws for assembling the bracket connections.

Installation and Requirements

Lumber Not Included: Wood posts and beams must be purchased separately. The brackets are designed to accommodate common lumber sizes, including 4x4, 6x6, 2x4, and 2x6.

Foundation Anchoring Hardware Not Included: Hardware for securing the post base brackets to a solid foundation must be purchased separately.

Assembly Required: This is a DIY pergola kit requiring construction of the wood structure and installation of the supplied brackets and canopies.

Wood Connection Hardware: Stainless steel #12 wood screws are included.

Canopy Installation: Mounting brackets and screws are included for securing the canopy straps to the pergola corner brackets and roof beams.

Warranty

Pergola Brackets: 5-year warranty.

Shade Canopies: 1-year warranty.
